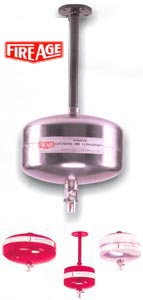

MODULAR
AUTOMATIC FIRE EXTINGUISHER
Fire is a calamity that strikes without any warning and
wreak an unimaginable havoc. According to a survey conducted
80% of the most damaging fires occur during night times,
weekends or holidays when no one is around. Hence an
automatic operation is the only solution for round-the-clock
protection against any kind of fire. Fire
Age Fire extinguishers are simple and economical
solution for buildings or structures where detection and
suppression piped systems prove cumbersome and very
expensive.
How Do They Work?
When heat from an uncontrolled fire increases to a
pre-set temperature of the unit, the fusible link releases,
discharging the extinguishing agent. The release
temperature of the extinguisher (fusible link) can be
pre-set at works ranging from 57°C/68oC/79oC/93DC/140°C and
so on. they require no external source of energy and it can
be operated electrically manually or mechanically for their
operation.
Salient Features
1. An Automatic Detection and Suppression System together in a single unit quite unlike
any
other system available in the market
2. Automatic round-the-clock protection
3. Available in individual units or as a Complete system
4. Automatic, hence no human involvement, reducing the
chances of injury and accidents to
virtually zero.
5. Proves to be the most economical when compared and
no surface re-laying
7. Reusable cylinder as it is not based on aerosol technology. Hence, most economical
8. Non-Freezing & long lasting.
Contents
Available with either Halon-1301 or Halon-1211, ABC all
purpose Dry chemical powder, or HFC-227ea (also known as
FM-200TM, a regd. trademark of Great Lakes
Chemical Corporation or as Dupont's FE-227TM, range of
extinguishing agents.
Electro Piston Actuator (Optional Feature)
Switch can be linked into the wiring circuit for electric
operation with solenoid actuator. This additional special
facility can be attached at minimum extra cost.
Mounting Arrangement (Optional Feature)
Mounting Arrangement can be designed for special application
request.
Applications
In Industries of following Types : Powder,
Textile,Chemicals, Fertilizers, Petrochemicals, Refineries,
Ceramics, Metal Processing, Vegetable Oil, Rubber, Wood,
Paper and Pulp, Printing, Plastic, Paint, Computer etc.
having special process hazards like Boiler & Furnaces, Fluid
Power Systems, Oil quenching, Spray Finishing, Powder
Coating, Dipping and Coating, Welding & Cutting, Grinding,
Solvent Extraction, Conveyor Systems, Aerosol Charging,
Transformers & Electrical Junction Boxes, Control Panels
etc.
Applicability for General Occupancies & Storage Areas
Like
Storage of Flammable & Combustible Liquids and Gases, Grain
Mill Products Solid Fuels, Records, Libraries, Museums,
Showrooms, Shops, Offices, Residential premises, Workshop,
Garages, Paint Booths, Theaters, Radio Rooms,
TV Stations etc.
The Common Features For All Models
|
Expellant : |
Nitrogen |
|
Cylinder Test
Pressure : |
30 kgf /cm2 |
|
Cylinder : |
Stainless Steel /
M. S. Platedor
Powder coated |
|
