Foam Equipments

Water & Foam Monitors
Portable Ground Monitor
Construction : Aluminium / Gunmetal / S.S
Size : 1/2" to 2/2"
Inlet : single / double / triple
Outlet : Instantaneous / Threaded / Flange Type. (Asrequired)
Mounting: Easily mounted on 4 detachable legs in  1 1/2" size
Operating  Pressure : Maximum 12 kgf/cm2
Weight : 16 kgs (in aluminium Construction)
Performance : Of size 1 1/2"
Horizontal throw : More than 25mtrs at 7 kgf/cm2 (in single inlet)
Vertical throw : More than 18 mtrs at 7 kgf/cm2 (in single inlet)
(Monitor suitable to work with any type of Nozzles)


Water & Foam Monitors

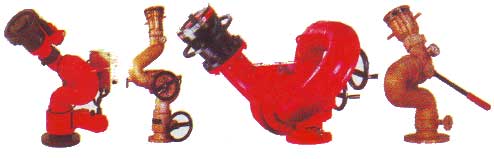

SUPER JET CUM LONG RANGE WATER /FOAM MONITOR
MOC Aluminum / Carbon Steel / Bronze/SS
Flow Capacity 1000 LPM to 12000 LPM
Size 50 mm to 200 mm
Horizontal throw 30 Mtrs to 120 mtrs
Operating Pressure Maximum 12 kgf /cm ²
Nozzles Jet type, Jet Spray & Fog type, Jet Spray & Foam type
Drive Manua / Gear operated worm drive , Remote Control
Optional Accessories Electric Operated Riser *

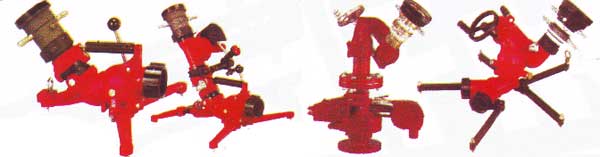

PORTABLE GROUND MONITOR

MOC Aluminum
Size 50 mm to75 mm
No of inlets 1 to 3
Inlet type NPT threaded / instantaneous
Operating pressure Min. 3.5 to Max.l2 kgf / cm ²
Weight 7 to 15 Kg
Max. flow capacity 1900 LPM to 3800 4800 LPM (Deck mormt type)
Horizontal throw 25 to 50 Mtrs
Vertical throw 12 to 25 Mtrs
Rotation 180 ° 360° (Deck Mount Type)
Drive Single person manually operated. Automatic ground oscillating rype
Stand Post Mounted oscillating type

TROLLEY MOUNTED MONITOR


Specification Any stand post type monitor of size 63 mm to 150mm can be fixed on Trolley/Trailer
Nozzle Any type of Nozzle can be fixed with the monitor & can be used for fire fighting purpose instantly
Tyres Scooter tyres OR Trolley tyres of not less than 14" dia
Inlets 2 to 4 nos. with built in spring loaded check valve inside male instantaneous coupling provided
Recommendation Use long range aqua foam type nozzle with monitor for long range & Multipurpose application
Optional accessories a) Dual racks for storing hoses
b )Locker for nozzles
c) Foam tank upto 200 ltrs
