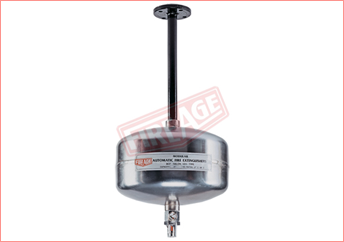

Modular Automatic Fire Extinguisher



MODULAR AUTOMATIC FIRE EXTINGUISHER
Fire is a calamity that strikes without any warning and wreak an unimaginable havoc. According to a survey conducted 80% of the most damaging fires occur during night times, weekends or holidays when no one is around. Hence an automatic operation is the only solution for round-the-clock protection against any kind of fire. Fire extinguishers are simple and economical solutions for buildings or structures where detection and suppression piped systems prove cumbersome and very expensive.

How Do They Work?
When heat from an uncontrolled fire increases to a pre-set temperature of the unit, the fusible link releases, discharging the extinguishing agent. The release temperature of the extinguisher (fusible link) can be pre-set at works ranging from 57ºC/68ºC/79ºC/93DC/140ºC and so on. they require no external source of energy and it can be operated manually or mechanically for their operation.

 Modular Automatic Fire Extinguisher

Salient Features
1 An Automatic Detection and Suppression System together in a single unit quite unlike any other system available in the market
2 Automatic round-the-clock protection
3 Available in individual units or as a Complete system
4 Automatic, hence no human involvement, reducing the chances of injury and accidents to virtually zero.
5 Proves to be the most economical when compared and no surface re-laying
6 Reusable cylinder as it is not based on aerosol technology. Hence, most economical
7 Non-Freezing & long lasting.

Contents
Available with either Clean Agent Gas, ABC all purpose Dry chemical powder, Potassium Bi Carbonate Dry Powder.

Electro Piston Actuator (Optional Feature) Switch can be linked into the wiring circuit for electric operation with solenoid actuator. This additional special facility can be attached at minimum extra cost.

Mounting Arrangement (Optional Feature)
Mounting Arrangement can be designed for special application request.

Applications
In Industries of following Types : Powder, Textile,Chemicals, Fertilizers, Petrochemicals, Refineries, Ceramics, Metal Processing, Vegetable Oil, Rubber, Wood, Paper and Pulp, Printing, Plastic, Paint, Computer etc. having special process hazards like Boiler & Furnaces, Fluid Power Systems, Oil quenching, Spray Finishing, Powder Coating, Dipping and Coating, Welding & Cutting, Grinding, Solvent Extraction, Conveyor Systems, Aerosol Charging, Transformers & Electrical Junction Boxes, Control Panels etc.

Applicability for General Occupancies & Storage Areas Like
Storage of Flammable & Combustible Liquids and Gases, Grain Mill Products Solid Fuels, Records, Libraries, Museums, Showrooms, Shops, Offices, Residential premises, Workshops, Garages, Paint Booths, Theaters, Radio Rooms, TV Stations etc.

The Common Features For All Models
Expellant : Nitrogen
Cylinder Test Pressure : 30 kgf /cm2
Cylinder : Stainless Steel / M. S. Chrome Plated or Powder coated



Address : 126, Shanti Industrial Estate, Sarojini Naidu Road,
Mulund (West), Mumbai - 400 080, Maharashtra, INDIA.
