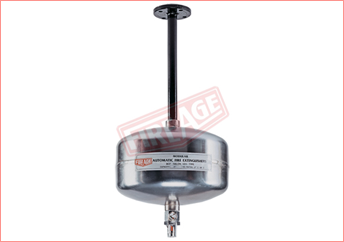

➣ MODULAR AUTOMATIC FIRE Extinguisher :
Fire is a calamity that strikes without any warning and wreak an unimaginable havoc. According to a survey conducted 80% of the most damaging fires occur during night times, weekends or holidays when no one is around. Hence an automatic operation is the only solution for round-the-clock protection against any kind of fire. Fire extinguishers are simple and economical solutions for buildings or structures where detection and suppression piped systems prove cumbersome and very expensive.
➣ How Do They Work?
When heat from an uncontrolled fire increases to a pre-set temperature of the unit, the fusible link releases, discharging the extinguishing agent. The release temperature of the extinguisher (fusible link) can be pre-set at works ranging from 57ºC/68ºC/79ºC/93DC/140ºC and so on. they require no external source of energy and it can be operated manually or mechanically for their operation.
➣ Salient Features :
An Automatic Detection and Suppression System together in a single unit quite unlike any other system available in the market
Automatic round-the-clock protection
Available in individual units or as a Complete system
Automatic, hence no human involvement, reducing the chances of injury and accidents to virtually zero.
Proves to be the most economical when compared and no surface re-laying
Reusable cylinder as it is not based on aerosol technology. Hence, most economical
Non-Freezing & long lasting.
➣ Contents
Available with either Clean Agent Gas, ABC all purpose Dry chemical powder, Potassium Bi Carbonate Dry Powder.
Electro Piston Actuator (Optional Feature) Switch can be linked into the wiring circuit for electric operation with solenoid actuator. This additional special facility can be attached at minimum extra cost.
➣ Mounting Arrangement (Optional Feature)
Mounting Arrangement can be designed for special application request.
➣ Applications
In Industries of following Types : Powder, Textile,Chemicals, Fertilizers, Petrochemicals, Refineries, Ceramics, Metal Processing, Vegetable Oil, Rubber, Wood, Paper and Pulp, Printing, Plastic, Paint, Computer etc. having special process hazards like Boiler & Furnaces, Fluid Power Systems, Oil quenching, Spray Finishing, Powder Coating, Dipping and Coating, Welding & Cutting, Grinding, Solvent Extraction, Conveyor Systems, Aerosol Charging, Transformers & Electrical Junction Boxes, Control Panels etc.
➣ Applicability for General Occupancies & Storage Areas Like
Storage of Flammable & Combustible Liquids and Gases, Grain Mill Products Solid Fuels, Records, Libraries, Museums, Showrooms, Shops, Offices, Residential premises, Workshops, Garages, Paint Booths, Theaters, Radio Rooms, TV Stations etc.
➣ The Common Features For All Models
Expellant :
Nitrogen
Cylinder Test Pressure :
30 kgf /cm2
Cylinder :
Stainless Steel / M. S. Chrome Plated or Powder coated

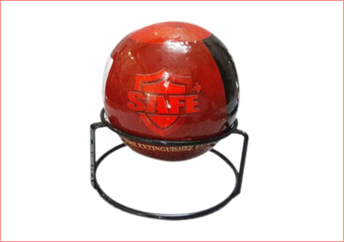

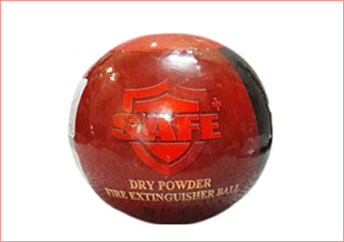

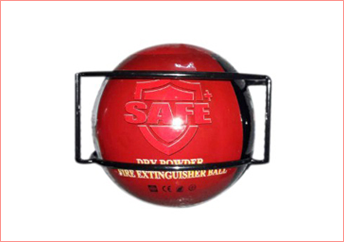

Fire Extinguisher Ball
Fire Extinguisher Ball
Fire extinguisher Ball
Fire Extinguisher Ball
➣ Installation : The Fire extinguisher Ball can be free standing or permanently fixed to wall, ceiling 0r directly to a surface.
➣ Application :
♦ Commercial Building
♦ Hotels
♦ Nursing Homes
♦ Hospitals
♦ Restraurants
♦ Residential Buildings
♦ Leisure Complexes
♦ Schools
♦ Public Areas
♦ Vehicles
♦ Maritime
♦ Railway
♦ Industrial
♦ Aviation
➣ Technical Parameter :
Weight of extinguisher ball & powder miture
1.05 +/- 0.15 kg
* Diameter : 150 mn
* Activation Time 3 - 5 Sec.
* Effective extinguisher Area : 3 cubic meter
➣ Easy To Use :
Simply mount to desired area and the Fire extinguisher Ball will self active. Effective on class A, B, E + F fires.
➣ Safe :
The Fire extinguisher Ball is harmless tao both the environment and humans
➣ Quick And Effective :
Within 3-5 secong of flame contact and reaching 70c the Fire extinguisher Ball will automatically extinguish a fire within a 3 cubic meter radius
➣ Maintenance Free :
The Fire extinguisher Ball is completely maintenance and service free. the product has a lifespan of 5 years.

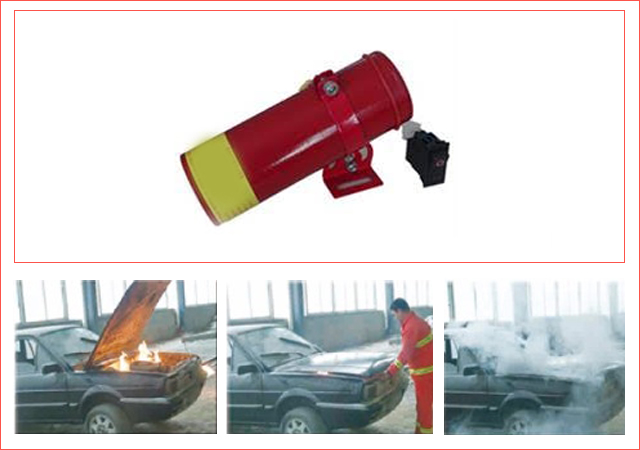

Engine Compartment Fire Extinguisher
Engine Compartment Fire Extinguisher
Suspended dry powder fire extinguishing device has advanced drive technology,effective fire extinguishing ability, attractive appearance, convenient installation
and long storage time, so it's a kind of environmental, energy-efficient new fire extinguishing device. The extinguishing agent is good quality ABC superfine dry powder, it can put out
engine compartment fire disaster quickly, prevent and reduce the traffic accident and
property loss caused by car fire disaster.
