➣ Specification : Indigenously designed as per our standard specification & also constructed as per customers design/requirements
➣ Tank : Available in MS/SS/FRP/TOTE TANK.
➣ Inside Coat : FRP lining in case of MS Construction
➣ Trailer : Chasis welded rolled steel channel construction, equipped with 2/4 tyres of 600-16 with tubes & with a front castor wheel & four jacks for resisting jet reaction force during fire fighting application
➣ Trolley : Frame made of channel equipped with2l4 trolley wheels of l0" / 12 " dia size with a front castor wheel & 4 stoppers for resisting jet reaction force during fire fighting application
➣ Lighting : Reflective lights & break lights provided with wire mesh protection guards over glasses (only in trailer Models).

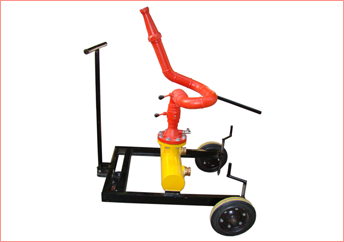

Mini Trolley Mounted Monitors

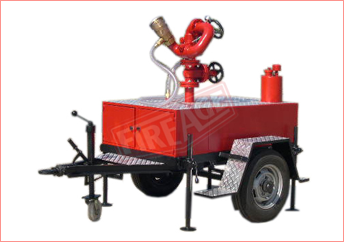

Water Cum Foam Mounted On Trolley / Trailer
➣ Specification : Any stand post type monitor of size 63mm to 150mm can be fixed on Trolley / Trailer
➣ Nozzle : Any type of Nozzle can be fixed with the monitor & can be used for fire fighting purpose instantly
➣ Types : Scooter tyres OR Trolley tyres of not less than 14" dia
➣ No of inlets : 2 to 4 Nos. With built in spring loaded check valve inside male instantaneous coupling provided
➣ Recommendation : Use long range aqua foam type nozzle with monitor for long range & Multipurpose application
➣ Optional accessories :
a) Dual racks for storing hoses
b) Locker for nozzle
c) Foam tank upto 200 ltrs
